5. Installing Authentication Modules¶
An authentication module will talk a standard authentication protocol to the application at which the user shall authenticate and on the other side it will talk the HTTP protocol to the LinOTP Server. The authentication modules communicate to the LinOTP Server via interfaces like /validate/check and /validate/simplecheck. For more information on the interfaces see Authentication interfaces.
At the moment there are the following authentication modules available:
pam_linotp
which can be plugged into the Unix PAM stack,
rlm_linotp2
which plugs into FreeRADIUS server to enable all RADIUS-Application to authenticate against LinOTP.
Alternatively there is the integration into the Radiator RADIUS Server, a script for the rlm_perl module to run with FreeRADIUS [1] and a module to integrate LinOTP into simpleSAMLphp.
On the Internet you can also find a module to use LinOTP with Wordpress [2] and a module to do two factor authentication with Apache2 [3].
pam_linotp and rlm_linotp2 are implemented in C and need to be compiled for your platform. The FreeRADIUS module is also available as ready made DEB package compiled for Debian Squeeze (64bit) or Debian Wheezy (64bit).
| [1] | http://www.howtoforge.com/how-to-use-freeradius-with-linotp-2-to-do-two-factor-authentication-with-one-time-passwords |
| [2] | http://wordpress.org/extend/plugins/linotp/ |
| [3] | https://github.com/lsexperts/mod_authn_linotp |
5.1. Enabling PAM authentication with pam_linotp¶
The pam_linotp is contained in the package LinOTP-2.x-.tar.gz. Unpack the package and change to the directory auth_modules. Unpack LinOTPAuth.tar.gz and change to LinOTPAuth/libpam-linotp/src/. Run the commands:
libtoolize
aclocal
automake –add-missing
autoconf
./configure
make
make install
This will install the PAM module to /lib/security/pam_linotp.so. You are now ready to use pam_linotp within your PAM stack.
Note
Depending on your distribution you will need to install a package like libpam-devel or libpam0g-dev to be able to compile the PAM module.
Note
Alternatively if your pamd supports the handling of python modules, you can use the pip python pam module.
5.1.1. Configure pam_linotp¶
pam_linotp can be used in any way in the pam auth facility. If you want to be able to switch OTP authentication easily on and off for each service and your distribution supports PAM includes like /etc/pam.d/auth-common, you may adapt the auth-common easily and create a file /etc/pam.d/auth-linotp:
auth [success=1 default=ignore] pam_linotp.so debug url=https://localhost/validate/simplecheck
auth requisite pam_deny.so
auth required pam_permit.so
pam_linotp knows the following parameters:
debug
pam_linotp supports the debug flag to produce debug output.
url
The url parameter defines, where your LinOTP server is located. Leave /validata/simplecheck unchanged unless you exactly know, what you are doing.
nosslhostnameverify
The hostname of the LinOTP Server is not checked to match the common name in the certificate when doing SSL.
nosslcertverify
The validity of the certificate of the LinOTP Server is not checked.
realm=<yourRealm>
The user to authenticate is only searched in this realm. This parameter is optional. Here you may enter the name of one of the realms you configured.
resConf=<special useridresolver>
The user to authenticate is only searched in this UserIdResolver. This parameter is optional. Here you may enter the name of one of the UserIdResolvers you configured.
loguser
If set to “no”, no usernames will be logged in the log file. The default is “yes”.
logpassword
If set to “yes” also passwords will be logged in the log file. The default is “no”.
5.2. Enabling RADIUS authentication with rlm_linotp2¶
rlm_linotp2 is a authentication module for the FreeRADIUS server. The rlm_linotp2 can not be compiled alone. When introducing new modules to FreeRADIUS you need to compile the complete FreeRADIUS server. Thus you also need to get the rlm_linotp2 as source code.
- Get FreeRADIUS 2.1.x – either as source from the project [5] or as source packages from your distribution.
- For compiling FreeRADIUS and rlm_linotp2 you need at least gcc, make, libtool, libssl-dev (or openssl-devel) , libcurl-dev (or libcurl-devel) and depending on your module selection further libraries.
- Unpack the FreeRADIUS source.
- Unpack LinOTP-2.x.tar.gz.
- You need to copy the source directory of rlm_linotp2 auth_modules/freeradius/src/rlm_linotp2 to the source directory of the FreeRADIUS modules. All modules reside in freeradius-server-2.1.x/src/modules/.
- Within the FreeRADIUS source directory you need to add rlm_linotp2 to the file src/modules/stable. This file holds all modules that will be compiled with FreeRADIUS.
- For compiling the FreeRADIUS please refer to the FreeRADIUS documentation. But you should be good with:: ./configure && make clean && make
- check for the shared library files being created rlm_linotp2-2.1.8.so, rlm_linotp2.so.
- You may now install the FreeRADIUS Server:: make install
5.2.1. Configure rlm_linotp2¶
The source directory of rlm_linotp2 contains an example configuration file linotp2.conf which needs to be copied to your FreeRADIUS config directory (usually /etc/freeradius):
linotp2 {
validateurl = https://localhost/validate/simplecheck
sslhostnameverify = yes
sslcertverify = yes
realm = <yourRealm>
resConf = <special UserIdResolver>
}
The valid options are:
validateurl
The url parameter defines, where your LinOTP server is located. Leave /validata/simplecheck unchanged unless you exactly know, what you are doing.
sslhostnameverify
Whether the hostname of the LinOTP Server is checked to fit the common name in the certificate when doing SSL.
sslcertverify
Whether the validity of the certificate of the LinOTP Server is checked.
realm=<yourRealm>
The user to authenticate is only searched in this realm. This parameter is optional. Here you may enter the name of one of the realms you configured.
resConf=<special useridresolver>
The user to authenticate is only searched in this UserIdResolver. This parameter is optional. Here you may enter the name of one of the UserIdResolvers you configured.
restrictusername
If set to “yes” the username is checked if it only contains unharmful characters (letters, number and -_+.@). If set to “no” the characters in the username are not checked. This is possibly more dangerous but also allows to use unicode characters in the username. To test the FreeRADIUS Server setup you may issue a command like this:
echo "User-Name = koelbel@LOCAL, User-Password = 845788" | radclient -s -x 127.0.0.1 auth testing123
loguser
If set to “yes” the username is written to the log files. (default=yes).
logpassword
If set to “yes” the password is written to the log files. (default=no).
allowemptypassword
If set to “yes” the password can be empty. (default=no).
5.2.2. Using rlm_linotp2 and SSL¶
If you are using sslcertverify = yes the certificate of the LinOTP server will be check. For this the FreeRADIUS needs to access the complete certificate chain of the root CA, possible intermediate CAs and issuing CA. You need to put all these certificates into the folder /etc/ssl/certs and need to create hash links [4] of those new certificates. The certificates need to be in PEM format and should have the file suffix .pem or .crt. You may use the command from the openssl package to create the hash links:
c_rehash /etc/ssl/certs
| [4] | A hash link is a link to a file, where the link name is the hash value of the file itself. |
| [5] | http://www.freeradius.org |
5.2.3. Fail-over configuration for RADIUS¶
The rlm_linotp2 module supports the fail-over configuration of the FreeRADIUS server. For more information on this see the FreeRADIUS documentation [6].
| [6] | http://wiki.freeradius.org/Fail-over |

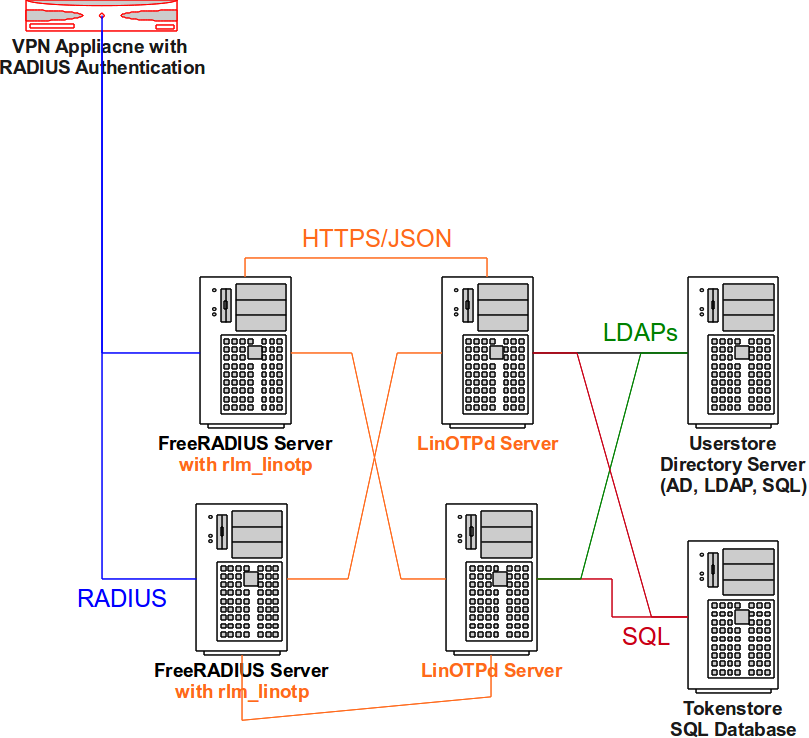

The fail-over configuration will work like this, that you may set up the FreeRADIUS server this way, that the rlm_linotp2 may talk to any number of LinOTP servers in a round robin like manner. So a simple redundant setup might look as in The RADIUS failover setup..
The RADIUS failover setup.
To configure such a redundant setup you need to modify two configuration files of the FreeRADIUS server. In the file /etc/freeradius/modules/linotp you define instances of the rlm_linotp2 module. Create an instance for each server like this:
linotp2 LinOTPinstance1 {
validateurl = https://linotp1/validate/simplecheck
sslhostnameverify = yes
sslcertverify = yes
}
linotp2 LinOTPinstance2 {
validateurl = https://linotp2/validate/simplecheck
sslhostnameverify = yes
sslcertverify = yes
}
linotp2 LinOTPinstance3 {
validateurl = https://linotp3/validate/simplecheck
sslhostnameverify = yes
sslcertverify = yes
}
Then you need to modify the file /etc/freeradius/sites-enabled/linotp and define, that the Auth-Type LinOTP2 should use all these instances:
authenticate {
Auth-Type LinOTP2 {
redundant {
LinOTPinstance1
LinOTPinstance2
LinOTPinstance3
}
}
[...]
}
5.3. Enabling RADIUS authentication with Radiator¶
Radiator [7] is a commercial highly configurable and flexible RADIUS server. It is written in Perl and thus can run on Linux, Unix, Mac OS X, Windows and VMS. Plugging LinOTP and Radiator together is fairly simple. Contact Open System Consultants Pty Ltd [8] to get your evaluation copy of Radiator.
To access LinOTP you will use the Authenticate Module AuthUrl. The Radiator configuration file could look like this:
<AuthBy URL>
Identifier LinOTPURL
Debug 1
AuthUrl https://linotpserver/validate/simplecheck
Timeout 5
UserParam user
PasswordParam pass
UrlMethod GET
BadPasswordKeyword ":-\("
BadUserKeyword ":-/"
AuthOKKeyword ":-\)"
PasswordEncryption Clear
</AuthBy>
<Realm DEFAULT>
AuthBy LinOTPURL
AcctLogFileName ./detail
</Realm>
All users in the default realm will now be authenticated by LinOTP.
| [7] | http://www.open.com.au/radiator/index.html |
| [8] | http://www.open.com.au/ |
5.4. Enabling RADIUS authentication with rlm_perl¶
Note
In redundant enterprise environments we recommend using the rlm_linotp module.
Nevertheless, an easy alternative way to setup LinOTP with FreeRADIUS is to use the FreeRADIUS module rlm_perl and the LinOTP module radius_linotp.pm. Copy the file radius_linotp.pm to your preferred location. Then you need to configure rlm_perl as the FreeRADIUS module to be used, e.g. by setting it as the default authentication type in /etc/freeradius/users:
DEFAULT Auth-type := perl
Then you need to configure rlm_perl by telling it, where to find radius_linotp.pm by configuring /etc/freeradius/modules/perl:
perl {
module = /path/to/radius_linotp.pm
}
Now you need to configure the authentication of your site. In /etc/freeradius/sites-enabled/linotp2:
- authenticate{
- perl [....]
Note
On certain distributions there are perl incompatibilities with the rlm_perl module, that ships with the FreeRADIUS. In these cases you need to preload the destinct version of your perl library like this:
LD_PRELOAD=/usr/lib/libperl.so.5.10.1 freeradius -X
You should add the LD_PRELOAD to your start script.
5.4.1. Configure radius_linotp.pm¶
The perl module reads a config file /etc/linotp2/rlm_perl.ini. It may look like this:
URL=https://172.16.200.146/validate/simplecheck
REALM=lsead
RESCONF=lsead
Debug=True
SSL_CHECK=False
5.5. Enable SAML Identify Provider¶
Starting with 2.4 LinOTP integrates into simpleSAMLphp [9] as an Identity Provider. simpleSAMLphp is a pluggable solution for the SAML and shibboleth protocol. It can run as a Service Provider and as an Identity Provider. In the later case LinOTP provides a module to enable simpleSAMLphp to authenticate users with one time passwords against LinOTP. The LinOTP SAML module comes with the following files:
linotp2/
linotp2/linotp2.json
linotp2/docs/linotp2.txt
linotp2/lib/Auth/Source/linotp2.php
which need to be copied to the simpleSAMLphp modules directory. The authentication module is then addressed by linotp2:linotp2. See the file docs/linotp2.txt for configuring the module. For setting up simpleSAMLphp as a SAML Identity Provider you may want to refer to the simpleSAMLphp documentation [10].
| [9] | http://simplesamlphp.org/ |
| [10] | http://simplesamlphp.org/docs/1.8/simplesamlphp-idp. |
